Medium Voltage Cable – Key Characteristics
High Current Carrying Capacity
Low Electrical Loss
Heat Resistant
Superior Mechanical Strength
Long Life
UV Resistant
Resistant to Chemical Exposure
Resistant to Weather Exposure
Resistant to Water (AD7/AD8)
Termite Resistant
ABOUT LV CABLES
INDOCABLES Medium Voltage (MV) Power Cables are designed for safe and reliable transmission of electrical power across utility networks, substations, power plants, and industrial distribution systems. Engineered for operating voltages from 3.3 kV up to 66 kV, these cables provide stable electrical performance and long operational life under continuous load and demanding service conditions.
Manufactured using high-conductivity copper or aluminium conductors with advanced XLPE insulation systems, INDOCABLES MV cables offer excellent dielectric strength, thermal endurance, and mechanical integrity. Available in single-core and three-core constructions, these cables are suitable for underground laying, ducts, trenches, trays, and direct burial installations. Enhanced resistance to UV radiation, moisture ingress, chemicals, and environmental exposure, along with optional halogen-free flame-retardant properties, ensures dependable performance and compliance with applicable Indian and international standards.
Construction – Single Core Cables
|
VOLTAGE
|
1.9 kV to 33 kV
|
|---|---|
|
CONDUCTOR
|
Stranded Compacted Circular Aluminium or Copper
|
|
CONDUCTOR SCREEN
|
Semiconductive Tape or Compound or Both Combined (Exclude 1.9/3.3 (E) kV & 3.3./3.3 kV(UE))
|
|
INSULATION
|
XLPE
|
|
INSULATION SCREEN
|
Non-Metallic: Semiconductive Tape or Compound or Both Combined (Exclude 3.3(E) & 3.3(UE)
Metallic: Copper Wire with Copper Tape or Copper Tape
|
|
Taping
|
Semi-Conductive Water Blocking Tape (Optional)
|
|
Inner Sheath
|
Extruded PVC Inner Sheath
|
Range – Single Core Cables
25 sq.mm to 1000 sq.mm (1.9 kV to 11 kV)
35 sq.mm to 1000 sq.mm (12.7 / 22 kV)
50 sq.mm to 1000 sq.mm (19 / 33 kV)

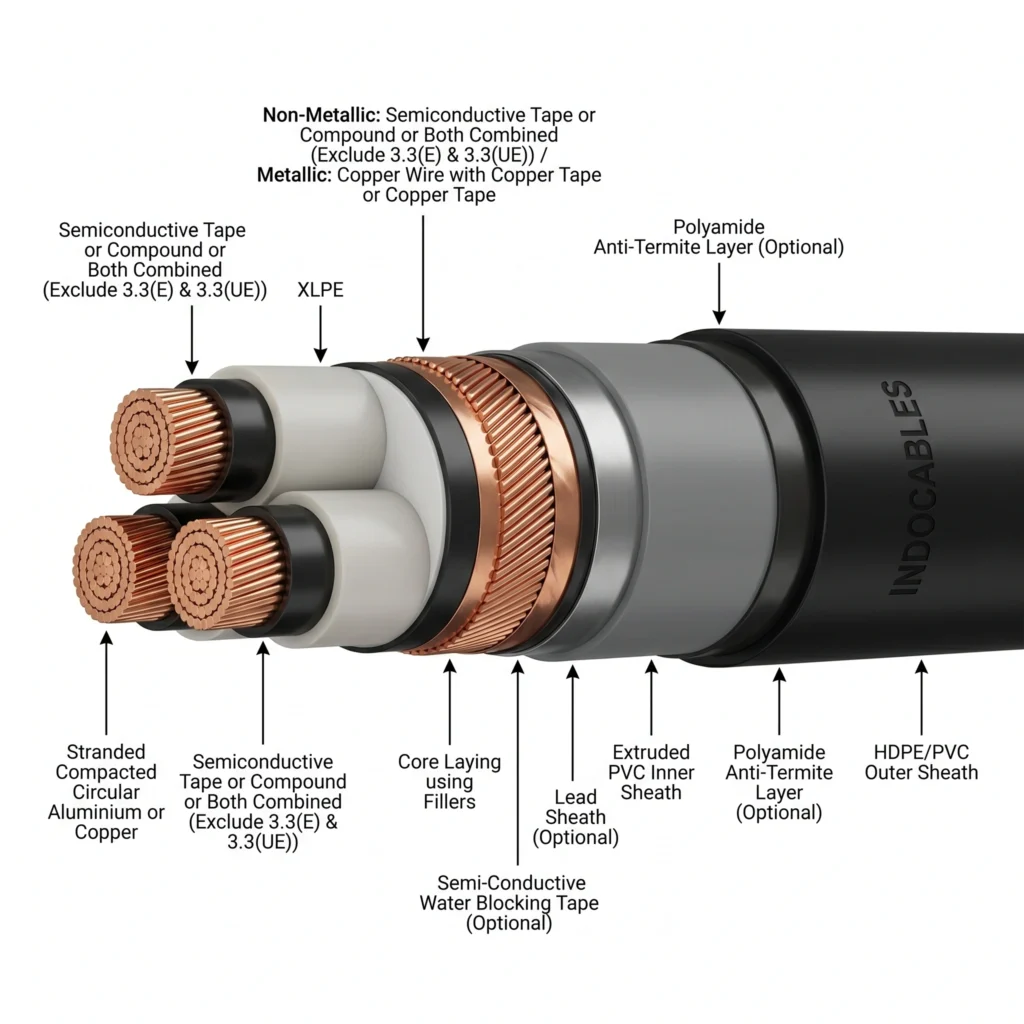

Construction - Three Core Cables
|
VOLTAGE
|
1.9 kV to 33 kV
|
|---|---|
|
CONDUCTOR
|
Stranded Compacted Circular Aluminium or Copper
|
|
CONDUCTOR SCREEN
|
Semiconductive Tape or Compound or Both Combined (Exclude 3.3(E) & 3.3(UE))
|
|
INSULATION
|
XLPE
|
|
INSULATION SCREEN
|
Non-Metallic: Semiconductive Tape or Compound or Both Combined (Exclude 3.3(E) & 3.3(UE)
Metallic: Copper Wire with Copper Tape or Copper Tape
|
|
Laid Up
|
Core Laying using Fillers
|
|
Taping
|
Semi-Conductive Water Blocking Tape (Optional)
|
Range - Three Core Cables
25 sq.mm to 500 sq.mm (1.9 kV to 11 kV)
35 sq.mm to 500 sq.mm (12.7 / 22 kV)
50 sq.mm to 500 sq.mm (19 / 33 kV)
